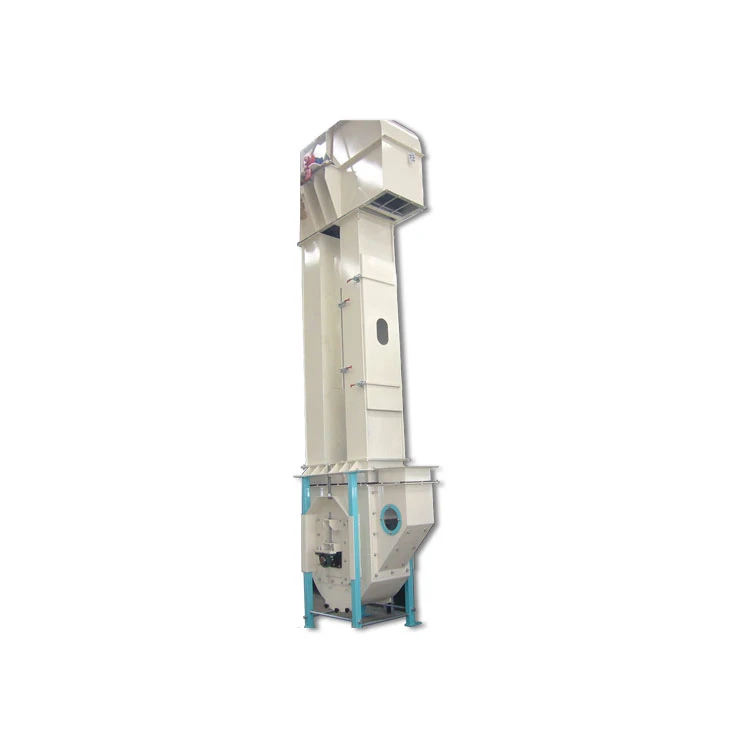

Elevatur tal-Barmil TDTG

Lift tal-barmil tal-qamħ

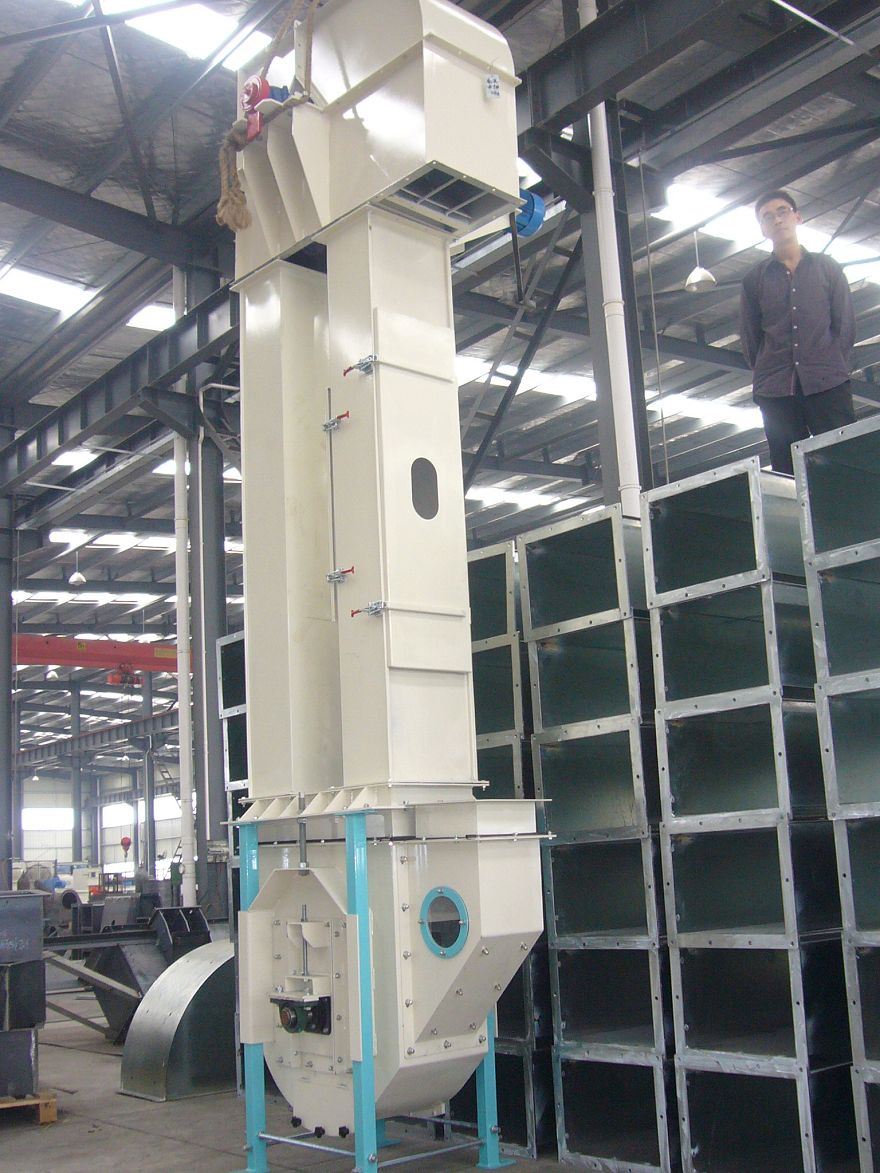

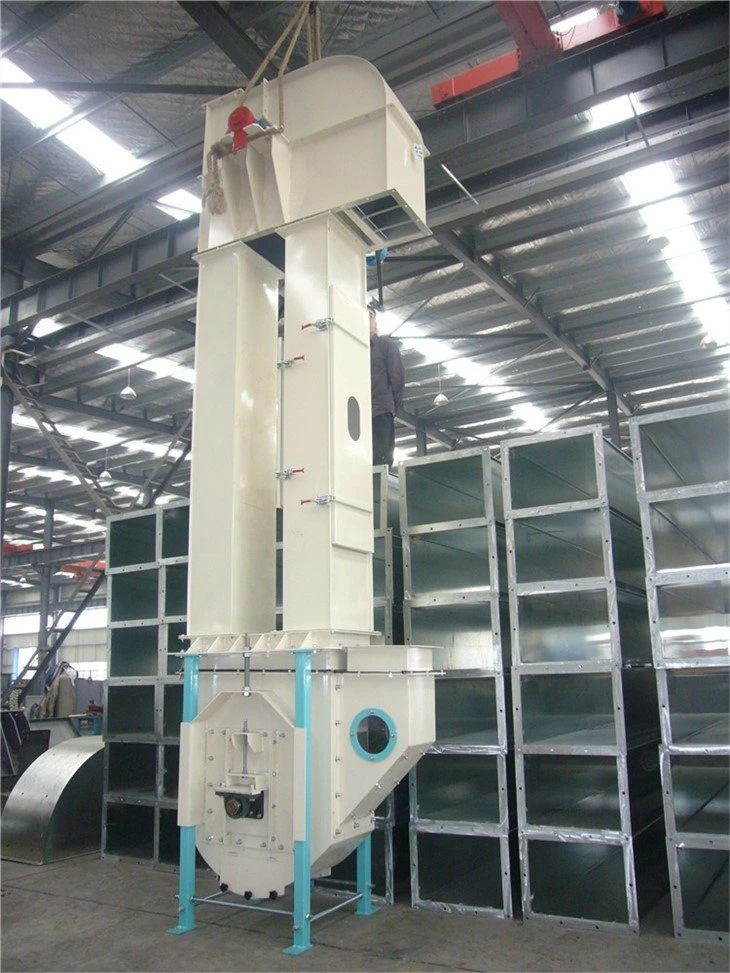

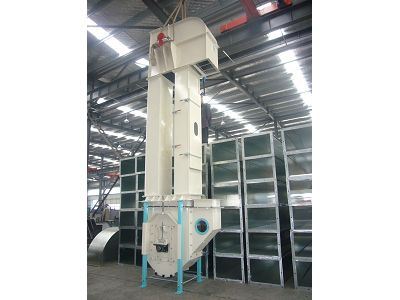

Lift tal-barmil TDTG

These models have compact structure, small footprint.

Excellent sealing performance and venting in case of dust explosion.

Optional devices for preventing the sideslip and back-stop to ensure safety and belt alignment.

Użat ħafna għat-twassil vertikali ta 'materjal bl-ingrossa trab jew granulari f'terminals tal-qamħ, terminals tal-port kif ukoll industriji bħal għalf, dqiq, ross, żejt li jittiekel eċċ.

Applikazzjoni u adattabilità

Bucket elevator is vertical continuous conveying equipment, and mainly used for conveying powdery materials in compound feed mills and premix feed mills.

Il-lift tal-barmil tas-serje huwa applikabbli għall-ġarr ta 'materjali tat-trab, materjali granulari u materjali żgħar f'daqqa. Jista 'jintuża għat-trasport ta' prodotti semi-lesti u lesti minn qamħ mhux ipproċessat f'impjanti tal-ipproċessar, speċjalment applikabbli għall-ġarr ta 'materjali waqt il-produzzjoni f'impjanti tal-ipproċessar tal-għalf u tal-qamħ, kif ukoll il-ġarr f'maħżen, impjant taż-żejt u eċċ.

Karatteristiċi

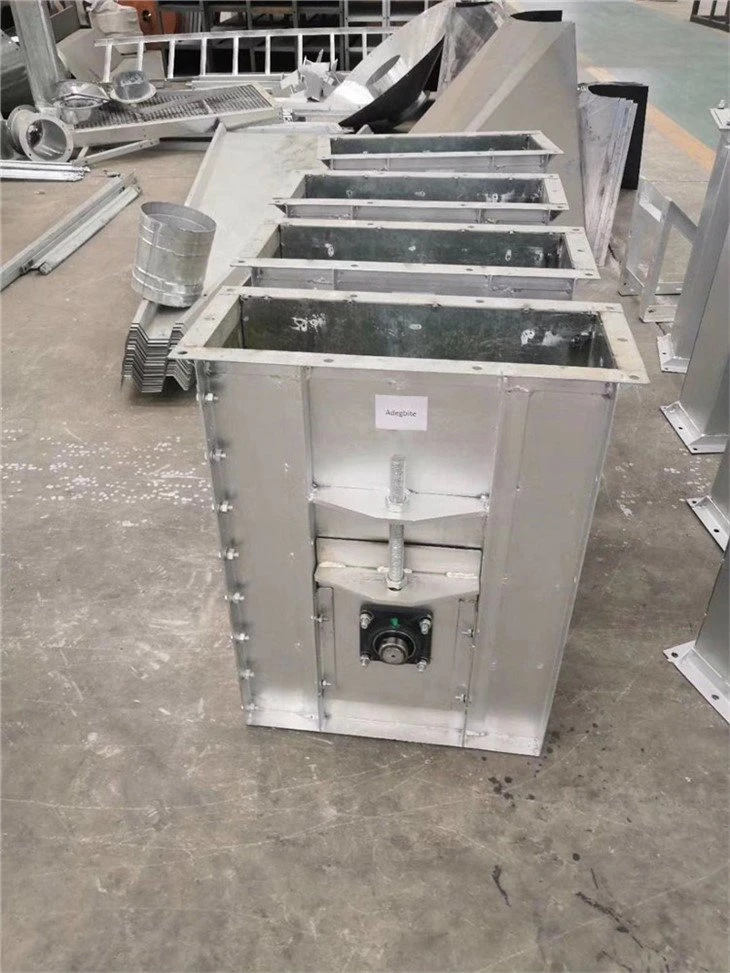

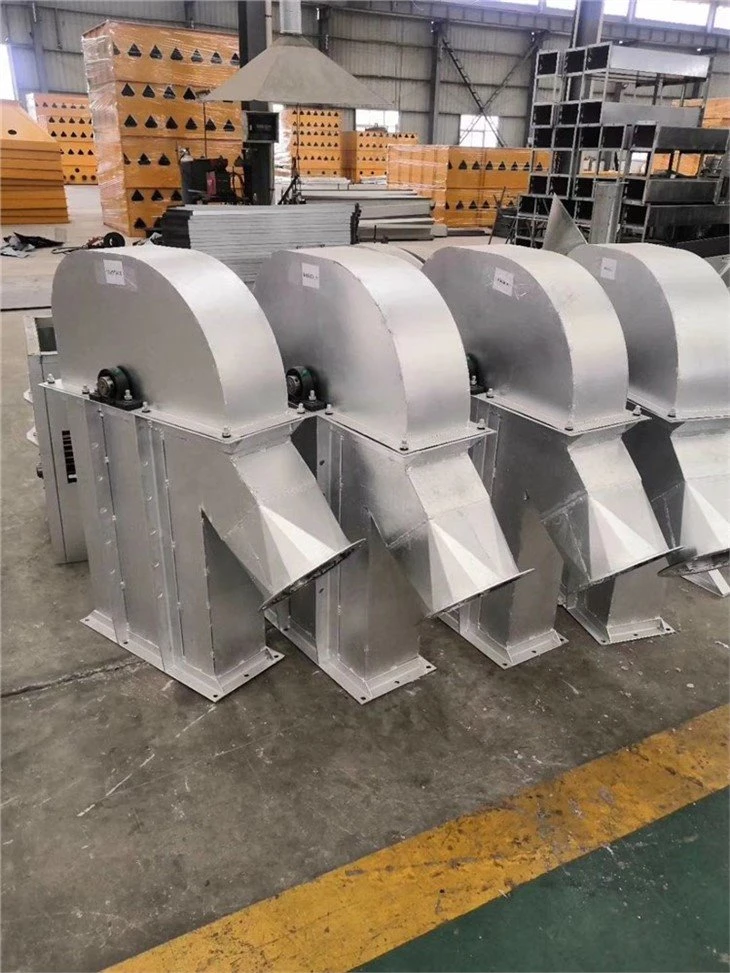

The boot section can be installed with forward or backward feed hopper according to customer's requirements;

The working components are mechanically bended, riveted and welded, and have good sealing performance;

The thick and flat rubber belt used as the traction belt is characterized by high strength, strong traction force, low extensibility, high durability and reliability;

The head section is equipped with explosion proof vent that can effectively prevent dust explosion;

It is possible to use straight-coupling drive of cycloid pin-gear speed reducer or secondary drive between speed reducing box and chain wheel (or V-belt), the driving is stable and reliable with low noise and easy for installation and repair.

It is possible to install alarm devices for speed measurement and sideslip as required by customers, so as to ensure safe and normal production; an automatic backstop device can be equipped against blockage of materials due to power failure;

The head section and boot section are equipped with hosting mechanism for the convenience of dismantling, mounting and maintenance.

L-għoli tal-immuntar huwa fakultattiv fil-medda permissibbli.

Parametri tekniċi
